Simple type
Features:
★Power off protection fuction.inbuilt power can offer power to make device works within 2minutes
★Automatic recognize north to south and south to north directions,auto announce station once the device arrive at station
★Auto stop announce once the bus leave station
★Inbuilt flash up to 4GB,external up to 32GB,very easy to extended
★The best EMC,EMC design,best choice for gas bus
★8-32V wide power input,high voltage can reach to 60V
★Power proof rubber keyboard design
★Friendly user Menu operation,easy,smart, convenient for user
★Support up to 15W D-class speaker inside and outside of the bus,best audio quality
★Support VGA,CVBS(NTSC,PAL) output
★Multi audio,video support,such as:MP4,AVI,WMA,MP3,WMV and so on
★ The "speed from the compensation technology", so that the stops have a more accurate device
broadcast capabilities
★Support GPS signal information display,user can check the signal statu at any time
★Technology Parameter
Storage | 4G-32G Extened (Standard 4G) |
Route Quantity | Unlimited（Based on internal memory） |
Station Quantity | Unlimited（Based on internal memory） |
LCD | 2.4inch TFT LCD |
Voltage | 10-32V |
Static Current | ≦200mA |
MAX Current | ≦3A |
Accuracy | ≦10Meter |
Operating Temperature | -10℃-60℃ |
Operating Humidity | 20%-80% |
Support Languages | Chinese,English(Customization Languages Support) |
SIZE | 120(L) X 69(W) X 25(H)mm |
Package size | 150(L) X 75(W) X 72(H) mm |
Weight | 380G |
Monitor type
Overview

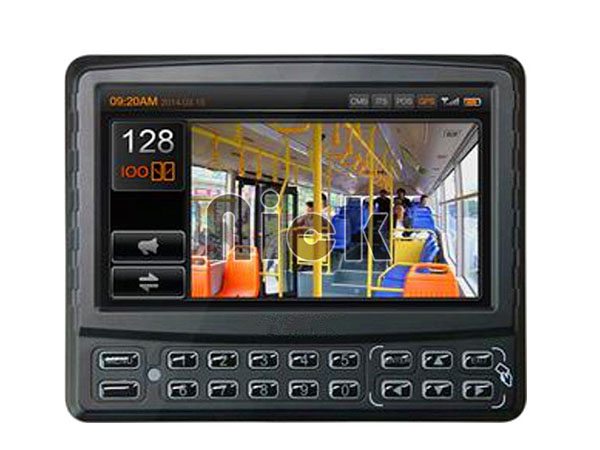

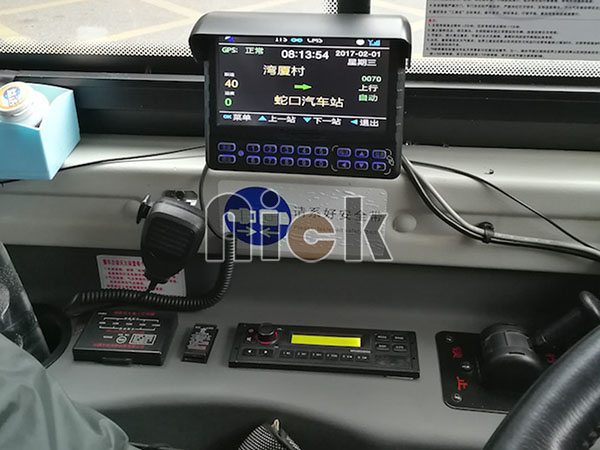

NK-P4 is a control panel used for bus intelligent dispatch system. Adopted with 18 buttons, 7 inches large screen display, it also integrates with features of SMS and voice broadcast. Moreover, it can realize the functions of speaking inside/outside of the vehicle, IP connection and making calls. It is widely applied to domestic and overseas bus systems for its easy installation, powerful features and convenient operation.
Main Features
-7 inches touch screen display.
-Supports for MDVR diagnosis and operation.
- Built-in speakers.
- Built-in RFID module to sign in/out
- Resolution 800*480
